Beneficiation of Dumped Low-Grade iron ore Fines for iron and steel Making

1.

Title of Product/Design/Equipment

Beneficiation of Dumped Low-Grade iron ore Fines for iron and steel Making

2.

IPR Status

Patent/Abroad IPR Details

-

3.

Application/Uses

4.

Salient Technical Features including Competing Features

The process is based on upgradation of dumped low-grade iron ore fines involving scrubbing-washing-classification of the dumped fine ore followed by gravity and magnetic separation of classified materials. The process ensures optimum recovery of iron values through closed loop operation and processing of intermediate products.

5.

Level/Scale of Development

0.5 tph. Further scale-up is possible.

6.

Environmental Considerations

The process is environmental friendly. However tailing disposal system needs to be in place

7.

Status of Commercialization

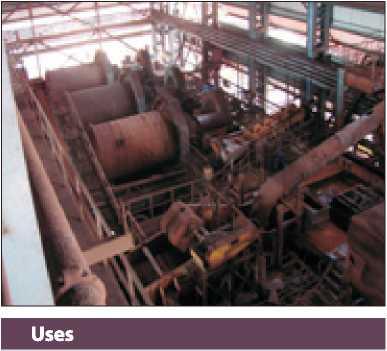

The technology has been commercialized and a plant with capacity of 1.35 mtpy has been commissioned.

8.

Major Raw Materials to be Utilized

Low-grade iron ore

9.

Major Plant Equipment and Machinery Required

Crushers, Grinding mills, Scrubber, Jig, Spiral, Hydrocyclone, Wet High Intensity Magnetic Separator, Dewatering units.

10.

Techno-Economics

The capital investment for a plant of 1.35 mtpy capacity would be around Rs. 300 crores.

Chemical requirement cost is about Rs.

against product cost of about Rs.

per ton of iron oxide production.

11.

Technology Package

a) Process knowhow with details of equipment, (b) Technological process flow-sheet with material balance & (c) Quality assurance methods. Assistance in setting up the plant on separate terms
